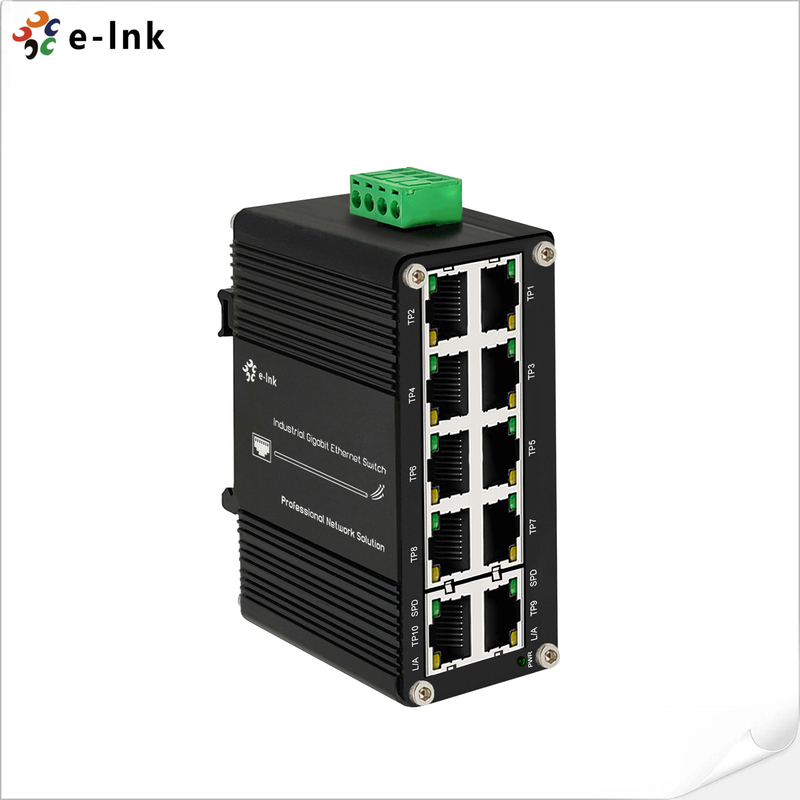

Mini Industrial 10-Port Gigabit Ethernet Switch Compact Rugged -40~80°C

تصویر بزرگ : Mini Industrial 10-Port Gigabit Ethernet Switch Compact Rugged -40~80°C

جزئیات محصول:

محل منبع:	گوانگدونگ ، چین
نام تجاری:	E-link
گواهی:	CE, RoHS, FCC, ISO9001
شماره مدل:	LNK-IMC010G
سند:	2E-link Video Transmission ...og.pdf

پرداخت:

مقدار حداقل تعداد سفارش:	1 قطعه
قیمت:	$39.9-$59.9
جزئیات بسته بندی:	بسته صادرات استاندارد سوئیچ فیبر نوری
زمان تحویل:	5-12 روز کار
شرایط پرداخت:	D/P ، T/T ، Western Union ، MoneyGram ، PayPal ، کارت اعتباری
قابلیت ارائه:	1000 قطعه در ماه

مخاطب

توضیحات محصول جزئیات

درگاه:	10 × 10/100/1000Base-T RJ45	ورودی برق:	12-48VDC ، با حفاظت از قطبیت معکوس.
مصرف برق:	<10 وات	MTBF:	> 200000 ساعت
محفظه:	آلومینیوم جمع و جور ، ضد گرد و غبار IP40 ، 46 میلی متر 88 88 95	نصب:	DIN-RAIL / WALL-MOUNT
برجسته کردن:	Mini industrial Gigabit Ethernet switch,10-port rugged Ethernet switch,Compact Gigabit switch for extreme temperatures , 10-port rugged Ethernet switch , Compact Gigabit switch for extreme temperatures

Mini Industrial 10-Port Gigabit Ethernet Switch Compact Rugged -40~80°C

Overview

The LNK-IMC010G Series is a compact 10-port Gigabit industrial Ethernet switch designed

for demanding environments. With wide voltage input, IP40-rated metal housing, and reliable

operation in extreme temperatures, it ensures stable performance in industrial automation,

transportation, and surveillance networks.

Features

10 Gigabit RJ45 Ports with auto-MDI/MDI-X for flexible connectivity

Wide 12~48VDC power input with redundant protection design

Industrial-grade rugged case with IP40 dustproof protection

Reliable in harsh environments: -40°C to 80°C operating range

High-performance switching with 20Gbps non-blocking fabric

Energy-efficient IEEE 802.3az compliant design

Easy installation via DIN-Rail or wall-mount options

Technical Indexes

Ethernet
Standards:	IEEE 802.3 Ethernet
	IEEE 802.3u Fast Ethernet
	IEEE 802.3ab Gigabit Ethernet
	IEEE 802.3x Full-Duplex Flow Control
	IEEE 802.3az Energy Efficient Ethernet (EEE)
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer:	2Mbits
Packet Length:	9216bytes
MAC Address Table:	4K entries
Switch Fabric:	20Gbps/non-blocking
Switch Throughput (packet per second)	14.88Mpps@64bytes
Connector:	10 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	12~48VDC Redundant power with polarity reverses protection function
Power Consumption:	<10W
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present

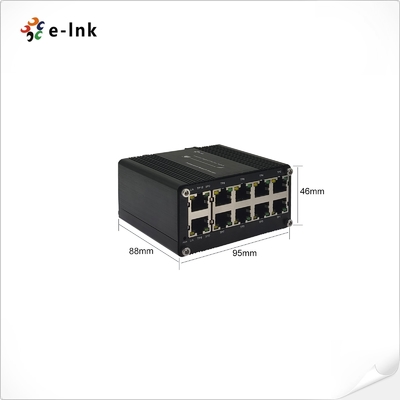

Dimensions (WxDxH):	95 x 88 x 46mm
Weight:	300g
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
LED Indicators:
PWR	Power
L/A	Link/Activity
SPD	Data Rate
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55032:2017
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC010G	Mini Industrial 10-Port 10/100/1000T Gigabit Ethernet Switch
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► Power Supply is to be purchased separately
