Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender
Industrial PoE Extender Overview
The LNK-IPE104-90 is an industrial-grade, 1-input, 4-output PoE extender designed for point-
to-multipoint PoE applications . It draws up to 95W of power from one 802.3bt PoE++ input port
and provides a total of 75W of PoE power to four PoE output ports . This device extends
the Gigabit Ethernet data and PoE power range from the standard 100 meters to 200 meters ,
and can simultaneously power up to four powered devices (PDs) such as network cameras
and wireless access points. The LNK-IPE104-90 features a plug-and-play design that requires
no external power supply, easily expanding PoE ports and reducing cabling costs. It is suitable
for security surveillance, wireless network coverage, industrial automation.
Industrial PoE Extender Features
► 10/100/1000Mbps Ethernet Ports
► 1 RJ-45 PoE/PD + 4 RJ-45 PoE/PSE
► IP40-rated aluminum case
► Can be Powered by IEEE 802.3at 30W Power Sourcing Equipment
► Can Power IEEE 802.3af PoE, IEEE 802.3at Powered Devices
► Extends an additional 100m for PoE network. Daisy chain support connection up
to 3 PoE Extenders for a total PoE+ network extension of 400m (1,312 ft.)
► Support DIN-Rail & Wall-mount installation
► Environmentally Hardened -40°C to 80°C (-40°F to 176°F) operating temperature

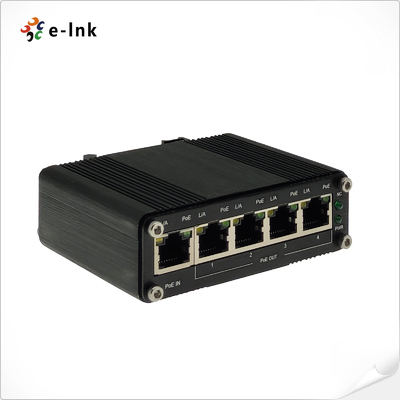

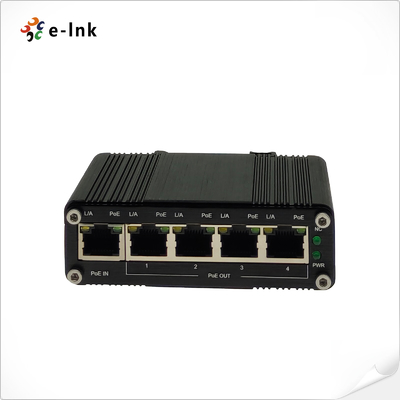

Industrial PoE Extender Panel & Interface
Industrial PoE Extender Technical Indexes
| Ethernet Port |
| PoE Input Port |
10/100/1000Base-TX RJ45,
IEEE 802.3bt PoE Input
Input Power 50~57V DC, Max 95W
|
| PoE Output Port |
1*10/100/1000Base-TX RJ45, IEEE 802.3bt/at PoE Output
Output Power: Max 75W in total, 75W@ 101m, 65W@ 200m
|
| Cascade connection |
Support 3 grade |
| Power over Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet
IEEE 802.3at Power over Ethernet Plus
IEEE 802.3bt Power over Ethernet Plus Plus
|
| PoE Power Supply Type |
Mid-span and End-span |
| PoE Pin Assignment |
1/2(+), 3/6(-),4/5(+), 7/8(-) |
| Switch Property |
| Standards |
IEEE 802.3 Ethernet
IEEE 802.3u Fast Ethernet
IEEE 802.3ab Gigabit Ethernet
IEEE 802.3x Flow Control
|
| Forwarding Modes |
Store and Forward |
| Transmission Distance |
100m |
| MAC Table |
8K |
| Switching Capacity |
10Gbps |
| Packet Forwarding Rate |
14.88Mpps |
| Flow Control |
IEEE 802.3x pause frame for full duplex, Back pressure for half duplex |
| Jumbo Frame |
10K bytes |
| Environment |
| Surge Immunity |
6KV, Standard: IEC6000-4-5 |
| ESD Protection |
6KV 1a Contact Discharge Level 3,
8KV 1b Air Discharge Level 3,
Standard: IEC61000-4-2
|
| Protection Level |
IP 40 |
| Operating Temperature |
-40°C to 80°C (-40°F to 176°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Operating Humidity |
0~95% (non-condensing) |
| Physical Parameter |
| Dimensions (WxDxH) |
95 x 70 x 30 mm |
| Weight |
0.25Kg |
| Casing |
Aluminum Case |
| Mounting Options |
DIN-Rail / Wall-mount |
| Certifications |
| Certifications |
CE, FCC, RoHS |
Industrial PoE Extender Ordering Information
| Model |
Description |
| LNK-IPE104-90 |
Industrial 1-Port 802.3bt PoE+ to 4-Port 802.3af/at Gigabit PoE Extender |
| Mounting Options |
► Default DIN-Rail Bracket installed; Wall Mount Bracket is included. |
Industrial PoE Extender Application
