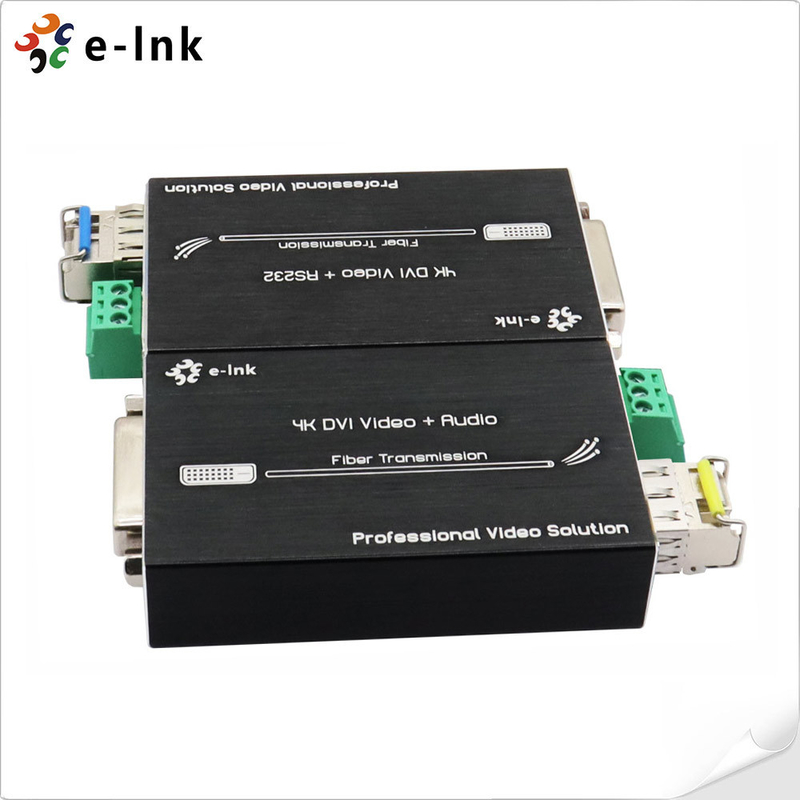

Micro 4K DVI Fiber Optic Extender with RS232

تصویر بزرگ : Micro 4K DVI Fiber Optic Extender with RS232

جزئیات محصول:

Place of Origin:	China
نام تجاری:	E-link
گواهی:	CE, RoHS, FCC
Model Number:	LNK-MDR4K Series

پرداخت:

Minimum Order Quantity:	1 pcs
قیمت:	negotiated
Packaging Details:	DVI Video to Fiber Converter Standard Export Package
Delivery Time:	5-12working days
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram, paypal,Credit Card
Supply Ability:	1000pcs/month

مخاطب

توضیحات محصول جزئیات

Type of Extender:	DVI signal over Optical Fiber Cable	Input Signals:	DVI
Connector:	DVI-D	Operating Temperature:	-10 ~ + 50°C
Dimensions (WxDxH):	2.87 x 1.73 x 0.69in (73x44x17mm)	Power dissipation:	<5W
برجسته کردن:	DVI Fiber Optic Extender,Micro 4K DVI Fiber Optic Extender,RS232 DVI Fiber Optic Extender , Micro 4K DVI Fiber Optic Extender , RS232 DVI Fiber Optic Extender

Mini 4K DVI Fiber Optic Extender with RS232

Overview

Product Highlights:

- Transmits uncompressed 4K*2K@60Hz (YUV 4:2:0) DVI + RS232 signals
- Supports ultra-long distance transmission up to 80km via optical fiber
- 10Gb/s high-speed serial data conversion technology
- RoHS compliant (meets EU/China environmental standards)
- Superior anti-interference capability for stable performance

Key Applications:
✓ Large-scale video walls
✓ Professional conferencing systems
✓ Premium home theaters
✓ Broadcast and production environments

Technical Advantages:
• Dual-function transmitter/receiver design
• Zero-latency, uncompressed signal quality
• Industrial-grade reliability

Ideal solution for demanding AV applications requiring long-distance, high-resolution signal transmission

with absolute signal integrity.

Features

Uncompressed transmission, No delay, No losses

Supports All Modes up to maximum 4K*2K@60Hz, YUV 4:2:0

Hot-Pluggable, EMI/RFI Resistant

Miniature form factor for ease of use and installation

Technical Indexes

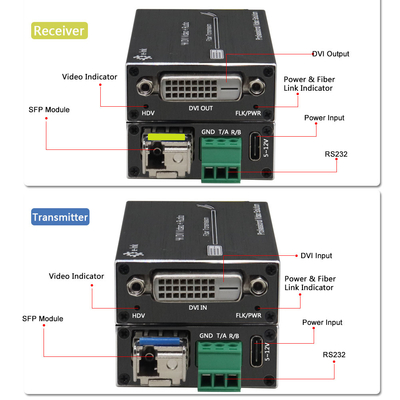

Type of Extender	DVI signal over Optical Fiber Cable
Input Signals	DVI
Connector	DVI-D
Signal Support	DVI 1.0 format standard and HDCP compliant
Video Support	Up to 720P/960P/1080p@60Hz, 4K*2K@30Hz
Audio Support	Dolby TrueHD, Dolby Digital Plus, DTS, DTS-ES 6.1, DTSHD, DTS-HD-HRA, DTS-HD Master, (PCM-2CH)
Chroma Subsampling	Max 38402160@60Hz (4:2:0) Max 38402160@30Hz (4:4:4, 4:2:2)
EDID	Bi-Directional (Forward + Backward) Transmission: Support Dynamic EDID, Plug & Play, no need to learn Single-Directional (Forward) Transmission: Support EDID learning manually
RS232	3 Pin terminal, Baud rate ≤ 38400
Fiber Connector	SFP/LC
Bandwidth	10.2Gbps
Transmission Distance	300m (Over OM3 Fiber)
Transmission Distance	Up to 80km (Over Single-mode Fiber)
Operating Temperature	-10 ~ + 50°C
Storage Temperature	-20 ~ + 80°C
Humidity	5% to 90% RH (non-condensing)
MTBF	100,000 hours
Dimension (WxDxH)	2.87 x 1.73 x 0.69in (73x44x17mm)
Weight	60g / 0.13 lb
Power Supply	5V DC (USB-C)
Power dissipation	<5W
Safety Approvals	CE, FCC, Rohs

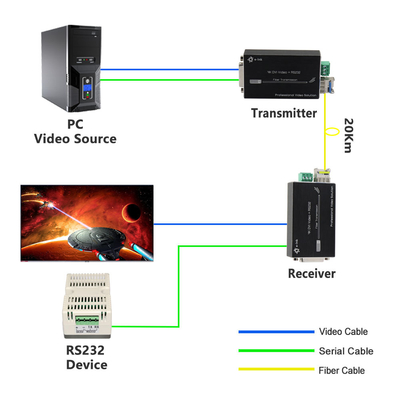

Application

Micro 4K DVI Fiber Optic Extender with RS232 0

Ordering Information

Model	Description
Model	Description

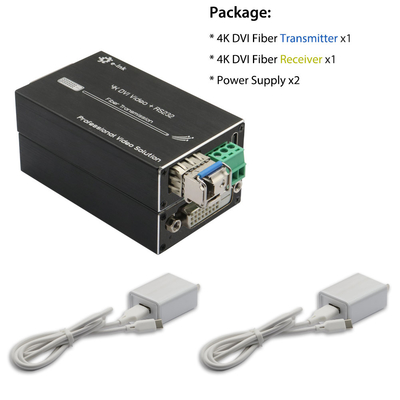

LNK-MDR4K-MM	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, OM3 Multi-mode Fiber, 300 meters, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK- MDR4K-S20	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 20km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK- MDR4K-S40	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 40km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
LNK- MDR4K-S80	Mini DVI Fiber Extender: 1-Ch DVI Signal(4K*2K) + Backwards RS232, Single-mode Fiber, 80km, LC, including 1 transmitter & 1 receiver, 5V DC Power Input
