10/100M Fast Ethernet Media Converter with Fiber Support up to 120km

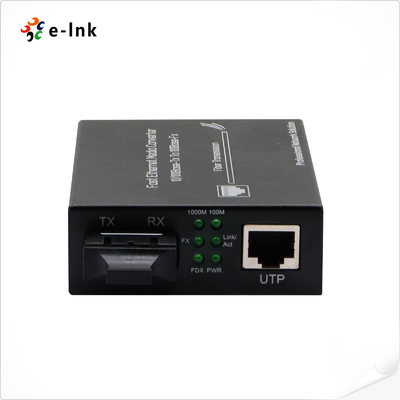

تصویر بزرگ : 10/100M Fast Ethernet Media Converter with Fiber Support up to 120km

جزئیات محصول:

محل منبع:	گوانگدونگ ، چین
نام تجاری:	E-link
گواهی:	CE, RoHS, FCC, ISO9001
شماره مدل:	سری LNK-1100

پرداخت:

مقدار حداقل تعداد سفارش:	1 عدد
قیمت:	$13-$45
جزئیات بسته بندی:	بسته بندی استاندارد مبدل مدیا فیبر اترنت
زمان تحویل:	3 ~ 5 روز کاری
شرایط پرداخت:	PayPal ، TT ، Western Union ، MoneyGram ، Alipay
قابلیت ارائه:	5000 قطعه در ماه

مخاطب

توضیحات محصول جزئیات

حالت دسترسی:	10/100mbps سریع اترنت	فاصله انتقال:	مس 100 متر ، فیبر 2-120 کیلومتر بسته به نوع فیبر
منبع تغذیه:	DC 5V / 1A	مصرف برق:	<2w
دما:	-10 درجه سانتیگراد تا 55 درجه سانتیگراد ، ذخیره سازی: -40 درجه سانتیگراد تا 70 درجه سانتیگراد	ابعاد:	26 × 94 × 94 میلی متر

10/100M Fast Ethernet Media Converter with Fiber Support up to 120km

Overview

The LNK-1100 Series Fast Ethernet Media Converter converts 10/100Base-TX copper signals to 100Base-FX optical fiber, supporting multi-mode and single-mode fiber transmission. It extends network distances from 100m via copper to up to 120 km via fiber, making it ideal for industrial, campus, and long-distance network applications. With auto-sensing duplex, MDI/MDI-X, QoS, and flexible transmission modes, it ensures reliable and high-performance connectivity.

Features

Flexible media conversion – 10/100Base-TX to 100Base-FX fiber

Long-distance transmission – up to 120 km over single-mode fiber

Auto-sensing & duplex support – full/half duplex, MDI/MDI-X auto detection

Transmission modes – store-and-forward or 100Mbps cut-through

Enhanced network performance – QoS support for VoIP and VLAN traffic

Compact & efficient – low power consumption (<2W), MTBF 100,000 hours

LED indicators – power, fiber link/activity, TP link/activity, duplex, rate

Flexible fiber options – multi-mode dual fiber, single-mode dual or single fiber

Technical Indexes

Parameter	Specifications
Access mode	10/100Mbps
Standard	IEEE802.3 10Base-T Ethernet, IEEE802.3u,100Base-TX/FX Fast Ethernet, IEEE802.3x Flow control
Wavelength	850nm/1310nm/1550nm
Transmission distance	Dual-fiber multi-mode: 2 km; Dual-fiber single mode: 20/40/60/80/100/120 km; Single fiber single mode: 20/40/60/80/100 km Category-5 twisted pairs: 100m
Port	One RJ45 port: for connecting STP/UTP category-5 twisted pairs One optical port: Multi-mode, dual fiber: SC or ST (50, 62.5/125μm) Single mode, dual fiber: SC or FC (9/125μm) Single mode Single fiber: SC or FC (9/125μm)
Conversion means	Store and Forward mode or Cut-Through mode
Buffer space	Built in 128Kb RAM for data buffer
Flow control	Full duplex: flow control; Half duplex: back pressure
BER	<19^-9
MTBF	100,000 hours
LED indicator	POER (power supply); FX LINK/ACT (optical link action); FDX (FX full duplex), TX LINK/ACT (TP cable link/action); TX 100 (TP cable rate 100M), FX100(fiber cable rate 100M)
Power supply	DC 5V / 1A
Power consumption	<40W (the chassis at full load), <2W
Operating temperature	-10~55ºC
Operating humidity	5%~90%
Maintaining temperature	-40~70ºC
Maintaining humidity	5% ~ 90% non-condensing
Dimensions (W x D x H)	71 x 94 x 26 mm

Ordering Information

Item	Description
Item	Description
LNK-1100	10/100Base-T to 100Base-F, multi-mode, 2km, 1310nm, SC, standalone, external power adaptor
LNK-1100S-20	10/100Base-T to 100Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor
LNK-S1100-20	10/100Base-T to 100Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor
