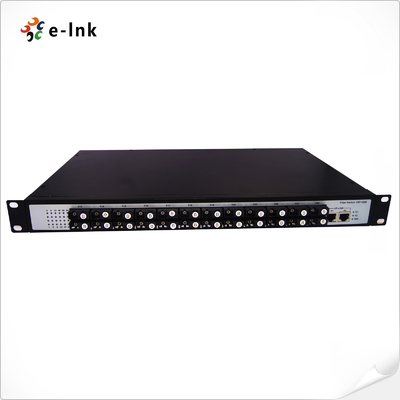

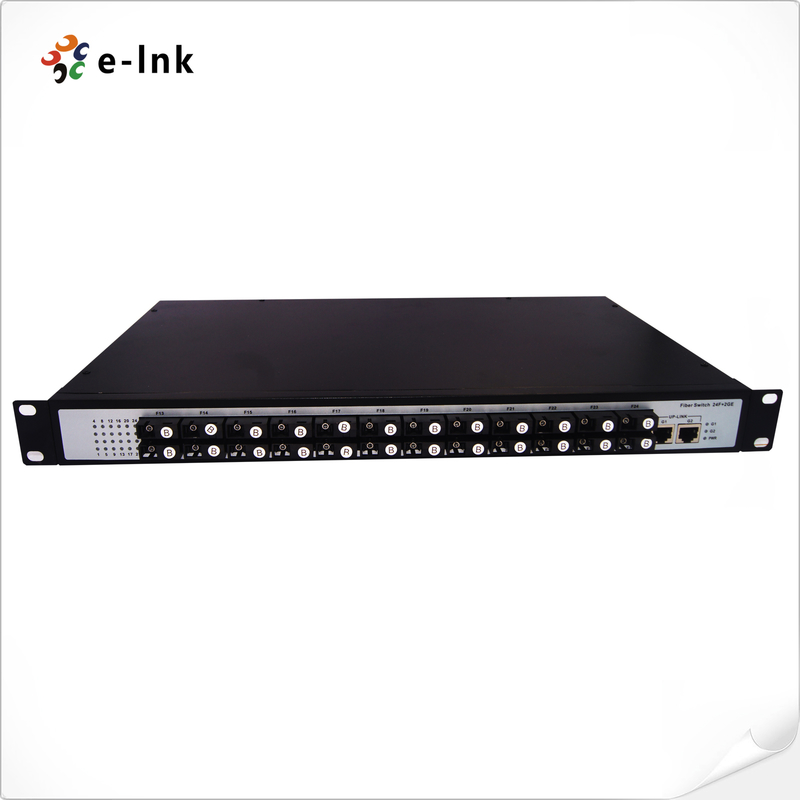

Unmanaged 24-port 100Base-FX SC + 2-10/100/1000-TX Optical Fiber Switch
Unmanaged 24-Port SC Fiber Switch Overview
The LNK-FS24SC02 Series is a high-density, high-performance managed optical fibre switch designed
for robust, scalable network deployment. It features 24 100Base-FX SC fibre ports for extensive
connectivity of fibre optic links, as well as 2 Gigabit Ethernet ports for high-speed uplinks or aggregation.
Exceptionally flexible, it supports both single and dual fibre modes, offering a transmission range
of 2km to 120km and making it suitable for short- and long-haul applications. This switch operates
efficiently in both half-duplex and full-duplex modes to ensure reliable and adaptable data transmission.
It is the perfect future-proof solution for setting up fibre-to-the-home (FTTH) networks, metropolitan
area networks (MANs) and other challenging fibre optic infrastructure projects.
Unmanaged 24-Port SC Fiber Switch Features
►24x 100Base-FX SC Ports + 2x 10/100/1000Base-TX Ports for flexible fiber and copper connectivity
►Auto-negotiation support with 10/100/1000Mbps full/half-duplex and Auto MDI/MDI-X at TX ports
►Hot-swappable 100BASE-SC modules for easy maintenance and expansion
►2K MAC address capacity with 1Mbit frame buffer memory for stable data forwarding
►19-inch 1U rack-mount design, suitable for standard network cabinets
►Wide operating temperature range: -10°C to 60°C, ensuring reliable performance in diverse environments
►110~240VAC universal power input for flexible deployment
►Durable aluminum housing with lightning protection design for enhanced safety and longevity
Unmanaged 24-Port SC Fiber Switch Technical Indexes
|
Ethernet
|
|
Standards:
|
IEEE802.3 10BASE-T
|
|
IEEE802.3u 100BASE-TX
|
|
IEEE802.3u 100BASE-FX
|
|
IEEE802.3ab 1000BASE-T
|
|
Forward & Filtering Rate:
|
14,880pps (10Mbps)
|
|
148,800pps (100Mbps)
|
|
1,488,000pps (1000Mbps)
|
|
Processing Type:
|
Store-and-Forward
|
|
Max Packet Length:
|
1522 Bytes
|
|
Address Table Size:
|
2K MAC Addresses
|
|
Backplane capacity
|
25.6G
|
|
RJ45 Port
|
2*10/100/1000Base-T(X)
|
|
Optical Port:
|
24*100Base-FX SC
|
|
Environmental
|
|
Operating Temperature:
|
-10°C to 60°C
|
|
Storage Temperature:
|
-40°C to 85°C
|
|
Relative Humidity:
|
5% to 95% non-condensing
|
|
Electrical and Mechanical
|
|
Input Power:
|
110~220VAC
|
|
Power Consumption:
|
25W Max. (Off-load)
|
|
40W Max. (Full load)
|
|
Dimensions (WxDxH):
|
485 x 235 x 45 mm
|
|
Weight:
|
2560g
|
|
Casing:
|
Metal Case, IP40 protection
|
|
Regulatory Approvals
|
|
ISO9001
|
|
EN55022:2006+A1: 2007 Class A
|
|
Surge Protection:
|
|
RJ45: 1KV
|
|
Power: 500V
|
|
ESD: 4KV
|
Unmanaged 24-Port SC Fiber Switch Ordering Information
|
Model
|
Description
|
|
LNK-FS24SC02-MM
|
Unmanaged 24-port 100Base-FX SC (Multimode Dual Fiber 2KM, 1310nm) + 2-10/100/1000-TX Optical Fiber Switch
|
|
LNK-FS24SC02-SM
|
Unmanaged 24-port 100Base-FX SC (Single Mode Dual Fiber 20KM, 1310nm) + 2-10/100/1000-TX Optical Fiber Switch
|
|
LNK-FS24SC02-SS
|
Unmanaged 24-port 100Base-FX SC (Single Mode Single Fiber 20KM, 1310nm TX/1550nm RX) + 2-10/100/1000-TX Optical Fiber Switch
|
After-Sales and Warranty Policy
It is composed of online customer service and telephone customer service, providing product consultation,
remote technical support, maintenance and acceptance services.
Service Policy: Three-month replacement and three-year warranty.
Replacement: Within three months of purchasing a series of products, after testing the product failure
by technicians and man-made damage caused by non-natural disasters, the purchaser can directly
go to the purchasing point to replace the same type of products.Or a product of comparable performance.
If there is no trouble in product testing, the original sample will be returned.
Warranty: Man-made damage caused by non-natural disasters, our company's free warranty period is 1 year.
[The following circumstances do not fall within the scope of replacement and free maintenance]
1.Damage caused by operation and maintenance not in accordance with the instructions in the product manual.
2.Damage caused by human factors, such as inappropriate voltage input, water intake and breakage.
3.Damage to products caused by natural disasters, such as lightning, earthquakes, fires, etc.
3.Unauthorized alteration of the inherent settings or repair without the company's permission.
4.Products beyond the scope of free maintenance.
5.Damage caused by transportation, loading and unloading during repairs sent by customers.
6.The product bar code or model on the product warranty card does not conform to the product itself.
7.Failure or damage caused by other non-product problems such as design, technology, manufacturing and quality.
