Industrial 1-Port PoE+ to 4-Port Gigabit PoE Extender 400m Cascade

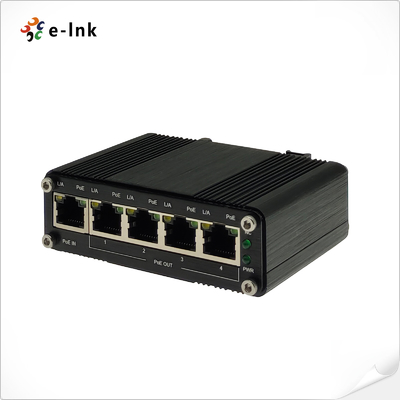

تصویر بزرگ : Industrial 1-Port PoE+ to 4-Port Gigabit PoE Extender 400m Cascade

جزئیات محصول:

محل منبع:	گوانگدونگ ، چین
نام تجاری:	E-link
گواهی:	CE, RoHS, FCC, ISO9001
شماره مدل:	LNK-IP104-30
سند:	E-link LNK-IPE104-30 Indust....0.pdf

پرداخت:

مقدار حداقل تعداد سفارش:	1 قطعه
قیمت:	$59-$83
جزئیات بسته بندی:	GIGABIT POE EXTENDER EXTENDER PACKPORT PACKPORT
زمان تحویل:	3-10 روز کار
شرایط پرداخت:	T/T ، Western Union ، MoneyGram
قابلیت ارائه:	1000 قطعه در ماه

مخاطب

توضیحات محصول جزئیات

ورودی PoE:	1 × Gigabit RJ45 (802.3AT ، 30W حداکثر)	خروجی پو:	4 × GIGABIT RJ45 (IEEE 802.3AF/AT ، 25.5W مشترک)
فاصله طولانی مدت:	200 متر در هر گسترش دهنده ، 400 متر حداکثر با 3 آبشار	محفظه:	طراحی آلومینیوم دارای امتیاز IP40 ، بدون فن
نصب:	گزینه های DIN-Rail & Wall-Mount	دامنه عملیاتی:	-40 درجه سانتیگراد تا 80 درجه سانتیگراد ، 0-95 ٪ RH

Industrial 1-Port PoE+ to 4-Port Gigabit PoE Extender 400m Cascade

Overview

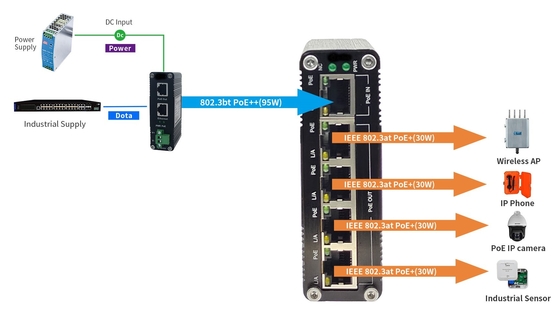

The LNK-IPE104-30 is an industrial-grade PoE extender that converts one 802.3at PoE+

input into four PoE outputs. It extends both power and data transmission up to 200m per

unit, with daisy-chain support of up to three devices for a total reach of 400m. Ideal for

multi-point deployments in surveillance, wireless AP, and IoT networks without additional

cabling or power adapters.

Features

1-to-4 PoE Extension – Expands a single PoE+ input into four PoE outputs

Long-Distance Power & Data – Extends Ethernet and PoE up to 200m per unit

Cascade up to 3 Units – Achieve a total PoE+ reach of 400m (1312 ft.)

High Power Support – Delivers up to 25.5W shared budget across 4 ports

Industrial Durability – IP40 aluminum housing, -40°C to 80°C operation

Plug-and-Play Deployment – No external power adapter required

Robust Protection – 6KV surge and 8KV ESD immunity for field reliability

Technical Indexes

Ethernet Port
PoE Input Port	10/100/1000Base-TX RJ45, IEEE 802.3at PoE Input Input Power 50~57V DC, Max 30W
PoE Output Port	1*10/100/1000Base-TX RJ45, IEEE 802.3af/at PoE Output Output Power: Max 25.5W in total, 25.5W@ 101m, 20W@ 200m
Cascade connection	Support 3 grade
Power over Ethernet
PoE Standard	IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus
PoE Power Supply Type	Mid-span and End-span
PoE Pin Assignment	1/2(+), 3/6(-),4/5(+), 7/8(-)
Switch Property
Standards	IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Flow Control
Forwarding Modes	Store and Forward
Transmission Distance	100m
MAC Table	8K
Switching Capacity	10Gbps
Packet Forwarding Rate	14.88Mpps
Flow Control	IEEE 802.3x pause frame for full duplex, Back pressure for half duplex
Jumbo Frame	10K bytes
Environment
Surge Immunity	6KV, Standard: IEC6000-4-5
ESD Protection	6KV 1a Contact Discharge Level 3, 8KV 1b Air Discharge Level 3, Standard: IEC61000-4-2
Protection Level	IP 40
Operating Temperature	-40°C to 80°C (-40°F to 176°F)
Storage Temperature	-40°C to 85°C (-40°F to 185°F)
Operating Humidity	0~95% (non-condensing)
Physical Parameter
Dimensions (WxDxH)	95 x 70 x 30 mm
Weight	0.25Kg
Casing	Aluminum Case
Mounting Options	DIN-Rail / Wall-mount
Certiﬁcations
Certiﬁcations	CE, FCC, RoHS

Ordering Information

Model	Description
LNK-IPE104-30	Industrial 1-Port 802.3at PoE+ to 4-Port 802.3af/at Gigabit PoE Extender
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
