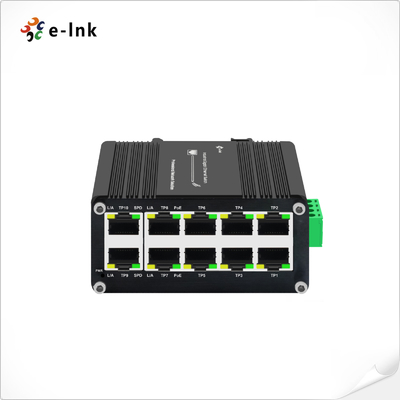

Mini Industrial 8-Port PoE+ 2-Port Gigabit Ethernet Switch DIN-Rail -40~80°C

Ethernet

Standards:

IEEE 802.3 Ethernet

IEEE 802.3u Fast Ethernet

IEEE 802.3ab Gigabit Ethernet

IEEE 802.3x Full-Duplex Flow Control

IEEE 802.3az Energy Efficient Ethernet (EEE)

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer:

2Mbits

Packet Length:

9216bytes

MAC Address Table:

4K entries

Switch Fabric:

20Gbps/non-blocking

Switch Throughput (packet per second)

14.88Mpps@64bytes

Interface

Connector:

10 10/100/1000BASET RJ45 auto-MDI/MDI-X ports

8 ports with 802.3at PoE+ injector function (Port 1 to 8)

PoE (Power over Ethernet)

Standard:

IEEE 802.3at Power over Ethernet Plus/PSE

IEEE 802.3af Power over Ethernet/PSE

Port:

RJ45

Power Pin Assignment

4/5(+), 7/8(-)

PoE Budget:

Up to 240-watt PoE budget

Max. Number of Class 4 PDs

8

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 100,000 hrs

Electrical and Mechanical

Input Power:

48~57VDC

Redundant power with polarity reverses protection function

Power Consumption:

<250W (Non-PoE<10W)

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

Dimensions (WxDxH):

95 x 88 x 46mm

Weight:

400g

Casing:

Aluminum Case

Mounting Options:

DIN-Rail mount

LED Indicators:

PWR

Power

L/A

Link/Activity

SPD

Data Rate

PoE

Max 30W per port

Regulatory Approvals

EMC

CE (EN55032, EN55035)

EMI

FCC Part 15 Subpart B

EMS

EN61000-4-2 (ESD) EN61000-4-3 (RS)

EN61000-4-4 (EFT) EN61000-4-5 (Surge)

EN61000-4-6 (CS) EN61000-4-8 (PFMF) EN61000-4-11

Safety

CE (EN60950-1)

Surge Protection

8KV for PoE, RJ-45 and SFP ports

Shock

IEC60068-2-27

Freefall

IEC60068-2-32

Vibration

IEC60068-2-6
