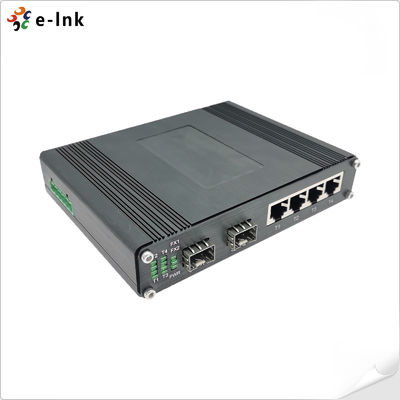

Industrial 4-Port 802.3bt 90W PoE++ + 2-Port SFP Hardened Gigabit Switch

Ethernet

Standards:

IEEE802.3 10BASE-T

IEEE802.3u 100BASE-TX/FX

IEEE802.3ab 1000BASE-T

IEEE802.3z 1000BASE-X

IEEE 802.3az Energy Efficient Ethernet (EEE)

IEEE802.3af Power over Ethernet

IEEE802.3at Power over Ethernet

Forward & Filtering Rate:

14,880pps (10Mbps)

148,800pps (100Mbps)

1,488,000pps (1000Mbps)

Packet Buffer Memory:

1M bits

Processing Type:

Store-and-Forward

Max Packet Length:

9K Bytes

Address Table Size:

2048 MAC Addresses

Interface

Connector:

4 x RJ45

Optical Port:

2 x 100/1000Base-FX (SFP, SC, FC, ST Optional)

Environmental

Operating Temperature:

-40°C to 80°C (-40°F to 176°F)

Storage Temperature:

-40°C to 85°C (-40°F to 185°F)

Relative Humidity:

5% to 95% non-condensing

MTBF

> 200,000 hrs

Electrical and Mechanical

Input Power:

48~57V DC, Redundant Power (6-pin Terminal Block)

Power Consumption:

360W Max. (PoE in use)

5W Max. (PoE not in use)

Standard:

IEEE802.3af/at/bt

PoE:

Port:

RJ45 Port 1 ~ Port 4

Max. Power per Port:

90W Max per port

Power Pin Assignment

1/2(+), 3/6(-) or 4/5(+), 7/8(-)

Protection:

Power Input Overload:

Automatic Resettable

Reverse Polarity:

Present

LED Indicators:

Power:

Power1, Power2 Status

PoE:

Per Port Status

Ethernet (Per Port):

Link/Activity

SFP:

FX1, FX2

Dimensions (WxDxH):

150 x 115 x 30 mm

Weight:

0.5Kg

Casing:

Aluminum Case

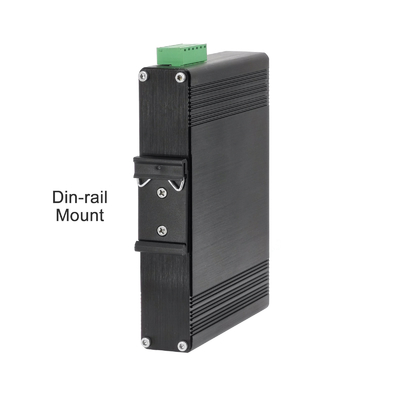

Mounting Options:

DIN-Rail / Wall-mount

Regulatory Approvals

ISO9001

EN55022:2010+AC: 2011, Class A

EN 61000-3-2: 2006+A1: 2009+A2: 2009

EN 61000-3-3: 2013

EN55024:2010

IEC 61000-4-2: 2008 (ESD)

IEC 61000-4-3: 2010 (RS)

IEC 61000-4-4: 2012 (EFT)

IEC 61000-4-5: 2014 (Surge)

IEC 61000-4-6: 2013 (CS)

IEC 61000-4-8: 2009 (PFMF)

Model

Description

LNK-IMC204GP90

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++)  + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m

LNK-IMC204GP90-20

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++)  + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM

LNK-IMC204GPS90-20

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++)  + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM

LNK-IMC204GPF90-20

Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE++) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM

LNK-IMC204GP90-SFP

Industrial 4-port 10/100/1000BASE-T (4-port PoE++) + 2-port 100/1000BASE SFP Ethernet Switch

SFP Options

► SFP option. Please select your SFP on our SFP Options Page

► SFP module is to be purchased separately.

Mounting Options

► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.

Power Options

► 480W/10A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.

► Power Supply is to be purchased separately.
