Industrial 4-Port Gigabit PoE+ Switch + 2 SFP Fiber -40~80°C DIN-Rail

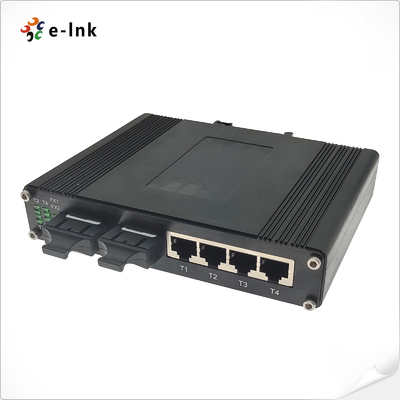

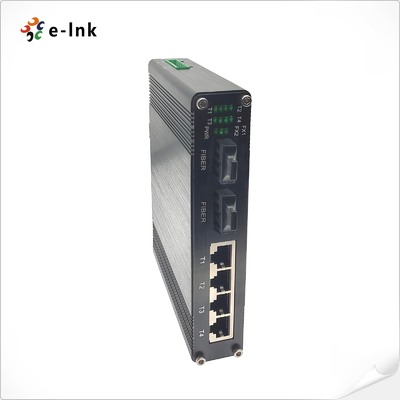

تصویر بزرگ : Industrial 4-Port Gigabit PoE+ Switch + 2 SFP Fiber -40~80°C DIN-Rail

جزئیات محصول:

محل منبع:	گوانگدونگ ، چین
نام تجاری:	E-link
گواهی:	CE, RoHS, FCC, ISO9001
شماره مدل:	LNK-IMC204GP
سند:	E-link LNK-IMC204GP Series ....1.pdf

پرداخت:

مقدار حداقل تعداد سفارش:	1 قطعه
قیمت:	$90-$129
جزئیات بسته بندی:	بسته صادرات استاندارد سوئیچ فیبر نوری
زمان تحویل:	5-12 روز کار
شرایط پرداخت:	T/T ، Western Union ، MoneyGram ، PayPal ، کارت اعتباری
قابلیت ارائه:	1000 قطعه در ماه

مخاطب

توضیحات محصول جزئیات

درگاه:	4 × RJ45 (10/100/1000Base-T POE+) ، 100 × 100/1000Base-X (SFP/SC/FC/ST)	پره:	IEEE802.3AF/AT ، حداکثر 30W در هر درگاه ، کل 132W حداکثر
ورودی برق:	48 ~ 57vdc ، بلوک ترمینال 6 پین	دما:	-40 درجه سانتیگراد 80 درجه سانتیگراد
ابعاد / وزن:	150 × 115 × 30 میلی متر / 0.5 کیلوگرم	پوشش:	آلومینیوم ، بدون فن
برجسته کردن:	Industrial Gigabit PoE+ switch with SFP,DIN-Rail fiber optic switch,4-port PoE+ switch for harsh environments , DIN-Rail fiber optic switch , 4-port PoE+ switch for harsh environments

Industrial 4-Port Gigabit PoE+ Switch + 2 SFP Fiber -40~80°C DIN-Rail

Overview

The LNK-IMC204GP Series is a ruggedized 6-port industrial PoE switch designed for

mission-critical applications. Featuring 4 Gigabit PoE+ RJ45 ports and 2 dual-speed fiber

uplinks (100/1000Base-X), it ensures reliable high-bandwidth connectivity for IP cameras,

wireless APs, and remote devices. With redundant power inputs, wide temperature tolerance

(-40°C~80°C), and hardened aluminum housing, this switch is ideal for harsh industrial,

surveillance, and outdoor networking environments.

Features

4× PoE+ Gigabit Ports delivering up to 30W per port (IEEE802.3at)

2× 100/1000Base-X fiber uplinks with SFP/SC/FC/ST options

High reliability with redundant 48~57VDC power input & overload protection

Rugged design: -40°C to 80°C operating range, fanless aluminum housing

Supports jumbo frames (9K Bytes) and 1M buffer for smooth data forwarding

DIN-Rail & Wall-mount options for flexible industrial deployment

MTBF >200,000 hours, ensuring long-term stable operation

Compliant with EMC/EMI industrial standards (EN, IEC certifications)

Technical Indexes

Ethernet
Standards:	IEEE802.3 10BASE-T
	IEEE802.3u 100BASE-TX/FX
	IEEE802.3ab 1000BASE-T
	IEEE802.3z 1000BASE-X
	IEEE 802.3az Energy Efficient Ethernet (EEE)
	IEEE802.3af Power over Ethernet
	IEEE802.3at Power over Ethernet
Forward & Filtering Rate:	14,880pps (10Mbps)
	148,800pps (100Mbps)
	1,488,000pps (1000Mbps)
Packet Buffer Memory:	1M bits
Processing Type:	Store-and-Forward
Max Packet Length:	9K Bytes
Address Table Size:	2048 MAC Addresses
Interface
Connector:	4 x RJ45
Optical Port:	2 x 100/1000Base-FX (SFP, SC, FC, ST Optional)
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF	> 200,000 hrs
Electrical and Mechanical
Input Power:	48~57VDC, Redundant Power (6-pin Terminal Block)
Power Consumption:	132W Max. (PoE in use)
Power Consumption:	5W Max. (PoE not in use)
Standard:	IEEE802.3af/at
PoE:
Port:	RJ45 Port 1 ~ Port 4
Max. Power per Port:	30W Max per port
Power Pin Assignment	1/2(+), 3/6(-) or 4/5(+), 7/8(-)
Protection:
Power Input Overload:	Automatic Resettable
Reverse Polarity:	Present
LED Indicators:
Power:	Power1, Power2 Status
PoE:	Per Port Status
Ethernet (Per Port):	Link/Activity
SFP:	FX1, FX2
Dimensions (WxDxH):	150 x 115 x 30 mm
Weight:	0.5Kg
Casing:	Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Regulatory Approvals
ISO9001
EN55022:2010+AC: 2011, Class A
EN 61000-3-2: 2006+A1: 2009+A2: 2009
EN 61000-3-3: 2013
EN55024:2010
IEC 61000-4-2: 2008 (ESD)
IEC 61000-4-3: 2010 (RS)
IEC 61000-4-4: 2012 (EFT)
IEC 61000-4-5: 2014 (Surge)
IEC 61000-4-6: 2013 (CS)
IEC 61000-4-8: 2009 (PFMF)

Ordering Information

Model	Description
LNK-IMC204GP	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE+) + 2-port 100/1000BASE-X Fiber, Multimode, Dual Fiber, SC, 550m
LNK-IMC204GP-20	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Dual Fiber, SC, 20KM
LNK-IMC204GPS-20	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, SC, 20KM
LNK-IMC204GPF-20	Industrial Ethernet Switch: 4-Port 10/100/1000Base-TX (4-port PoE+) + 2-port 100/1000BASE-X Fiber, Single Mode, Single Fiber, FC, 20KM
LNK-IMC204GP-SFP	Industrial 4-port 10/100/1000BASE-T (4-port PoE+) + 2-port 100/1000BASE SFP Ethernet Switch
SFP Options	► SFP option. Please select your SFP on our SFP Options Page
SFP Options	► SFP module is to be purchased separately.
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC DIN-Rail Power Supply. Open Wire for Terminal Block.
Power Options	► Power Supply is to be purchased separately.
