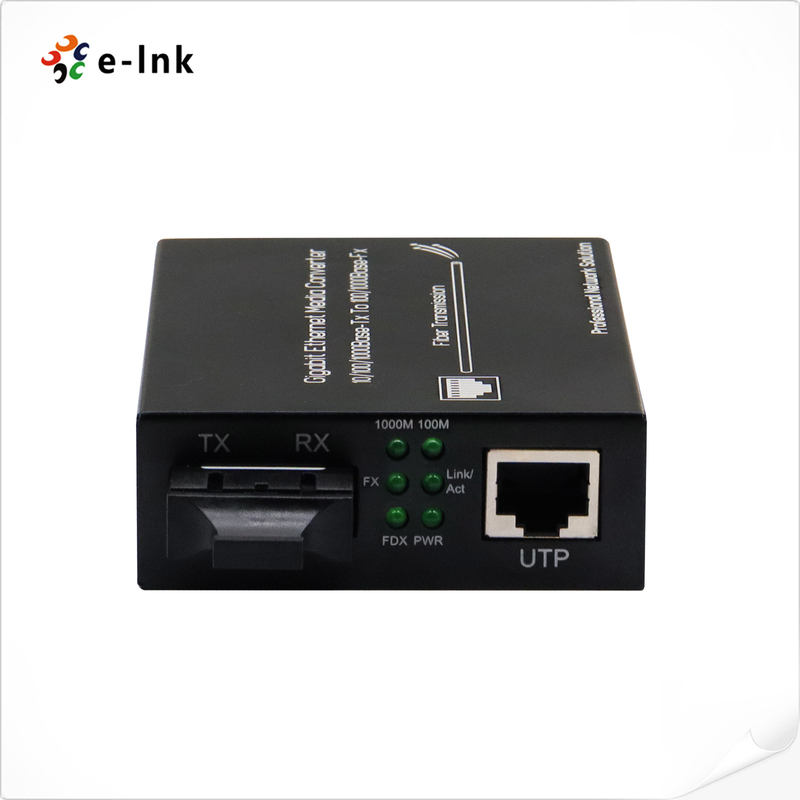

Gigabit Ethernet Media Converter with Multi-Mode and Single-Mode Fiber

Parameter

Specifications

Access mode

10/100/1000Mbps Gigabit Ethernet

Standard

IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet, IEEE802.3ab 1000Base-T , IEEE802.3z 1000Base-SX/LX Gigabit Ethernet

Wavelength

850nm/1310nm/1550nm

Transmission distance

multi-mode Dual-fiber: 220m (62.5/125μm)/550m (50/125μm)

single mode Dual-fiber: 20/40/60/80 Km

single mode Single fiber: 20/40/60/80 Km

Category-5 twisted pairs: 100m

Port

One RJ45 port: for connecting with STP/UTP category-5 twisted pairs

One optical port: Multi-mode Dual-fiber: SC/LC(SFP) (50, 62.5/125μm)

Single mode Dual-fiber: SC/FC/LC(SFP) (9/125μm)

Single mode Single fiber: SC/FC/LC(SFP) (9/125μm)

Conversion means

Media conversion

BER

<10^-9

MTBF

100,000 hours

Power supply

DC 5V / 1A

Power consumption

5W

Operating temperature

-10~55ºC

Operating humidity

5%~90%

Maintaining temperature

-40~70ºC

Maintaining humidity

5% ~ 90% non-condensing

Dimensions (W x D x H)

71 x 94 x 26 mm

Item

Description

LNK-3011

10/100/1000Base-T to 1000Base-F, mutli-mode, 500m, 850nm, SC, standalone, external power adaptor

LNK-3011S-20

10/100/1000Base-T to 1000Base-F, single mode, 20km, 1310nm, SC, standalone, external power adaptor

LNK-S3011-20

10/100/1000Base-T to 1000Base-F, WDM(single fiber bi-direction), 20km, 1310/1550nm, SC, standalone, external power adaptor
