Industrial Gigabit PoE Injector with 95W Power and Wide DC Input Range

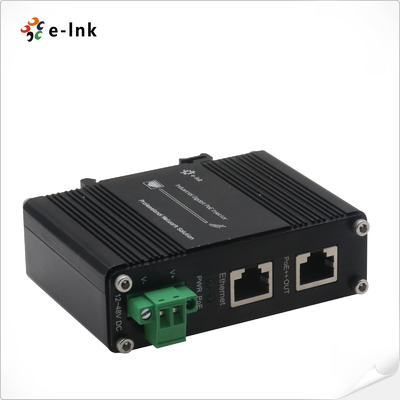

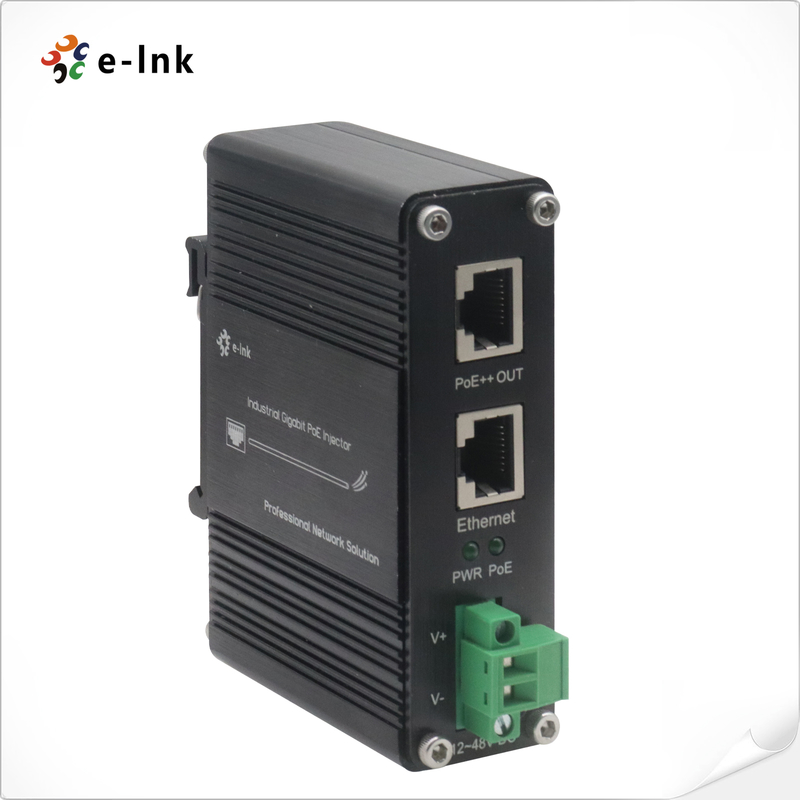

تصویر بزرگ : Industrial Gigabit PoE Injector with 95W Power and Wide DC Input Range

جزئیات محصول:

محل منبع:	گوانگدونگ ، چین
نام تجاری:	E-link
گواهی:	CE, FCC, RoHS, ISO9001
شماره مدل:	LNK-INJ301-90
سند:	E-link LNK-INJ301-90 Indust....0.pdf

پرداخت:

مقدار حداقل تعداد سفارش:	1 عدد
قیمت:	$75-$89
جزئیات بسته بندی:	بسته صادراتی استاندارد انژکتور PoE
زمان تحویل:	2-9 روز کاری
شرایط پرداخت:	T/T ، Western Union ، MoneyGram
قابلیت ارائه:	1000 قطعه در ماه

مخاطب

توضیحات محصول جزئیات

ورودی برق:	12 ~ 48 ولت DC (بلوک ترمینال)	توان خروجی POE:	حداکثر 95W (48VDC) ، 95W (24VDC) ، 60W (12VDC)
دمای عملیاتی:	-40 درجه سانتیگراد تا 80 درجه سانتیگراد (-40 درجه فارنهایت تا 176 درجه فارنهایت)	ابعاد:	95 x 70 x 30 mm (3.74 x 2.76 x 1.18 اینچ)
وزن:	0.25 کیلوگرم (0.55 پوند)	گزینه های نصب:	گزینه های Din-Rail و Wall-Mount در دسترس است
برجسته کردن:	Industrial Gigabit PoE Injector,95W Industrial Gigabit PoE Injector,Industrial Gigabit PoE Injector , 95W Industrial Gigabit PoE Injector , Industrial Gigabit PoE Injector

Industrial Gigabit PoE Injector with 95W Power and Wide DC Input Range

Overview

This industrial-grade Gigabit PoE injector provides a high 95W power output and supports

IEEE 802.3bt and LTPoE++ standards, making it ideal for powering PoE devices such as IP

cameras and wireless access points. It accepts a wide DC input range of 12~48V, with

voltage boosting functionality to ensure stable power delivery. The device features RJ45

Ethernet data input and PoE output ports, both supporting 10/100/1000Base-T, enabling

efficient data transmission up to 100 meters. With its durable aluminum housing, the injector

supports both DIN rail and wall-mount installations. It operates in harsh environments with a

temperature range of -40°C to 80°C, making it suitable for applications in surveillance, industrial

automation, and wireless networking.

Features

95W PoE Output: Supports IEEE 802.3bt/LTPoE++ standard, providing up to 95W power for

PoE devices.

Wide DC Input Range: Accepts 12~48V DC input with voltage boosting functionality for stable

power supply.

Gigabit Ethernet Support: Features 10/100/1000Base-T Ethernet ports for high-speed data

transmission.

Durable Construction: Built with an IP40-rated aluminum casing for robust protection in

industrial environments.

Temperature Resilience: Operates in extreme temperatures from -40°C to 80°C, suitable for

harsh conditions.

Flexible Mounting Options: Can be installed on DIN rail or wall-mounted for versatile

deployment.

Comprehensive PoE Diagnostics: Equipped with multiple LED indicators for monitoring PoE

status and performance.

High Compatibility: Complies with IEEE 802.3af/at/bt standards, ensuring compatibility with

a wide range of PoE devices.

Technical Indexes

Ethernet
Standards:	IEEE802.3 10 BASE-T Ethernet IEEE802.3u 100 BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE802.3 x Flow Control
Processing Type:	Forward
Processing Type:	Half-duplex, Full-duplex
Forward Filter Rate:	1,488,000pps (1000Mbps)
Cabling:	Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6, 6A 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6, 6A 1000BASE-T: 4-pair UTP Cat. 5e, 6, 6A
Maximum Distance:	Cat5 UTP up to 100m
Connector:	2x RJ45
Environmental
Operating Temperature:	-40°C to 80°C (-40°F to 176°F)
Storage Temperature:	-40°C to 85°C (-40°F to 185°F)
Relative Humidity:	5% to 95% non-condensing
MTBF:	>200,000hrs
Electrical and Mechanical
Input Power:	12~48VDC (Terminal Block)
Power Consumption:	100W Max.
Power over Ethernet:
Standard:	IEEE 802.3bt 4-pair Power over Ethernet
	IEEE 802.3at Power over Ethernet Plus
	IEEE 802.3af Power over Ethernet
Port:	RJ45
Power Pin Assignment	Data provide over pairs 1,2TX and 3,6RX Power over spare pairs 1,2,4,5(+) and 3,6,7,8(-)
PoE Budget:	Up to 95-watt PoE budget (48VDC) Up to 95-watt PoE budget (24VDC) Up to 60-watt PoE budget (12VDC)
LED Indicators:
Power:	Power Status
PoE:	PoE Status
Dimensions (WxDxH):	95 x 70 x 30 mm
Weight:	0.25Kg
Casing:	IP40 Aluminum Case
Mounting Options:	DIN-Rail / Wall-mount
Standard Accessories
Package Contents	LNK-INJ301-90
	User's manual
	Wall-mount kit
	DIN-mount kit
Regulatory Approvals
ISO9001
FCC part 15, Class A
EN55022:2006+A1: 2007 Class A
Surge Protection:
RJ45: 1KV
Power: 500V
ESD: 4KV/8KV

Ordering Information

Model	Description
LNK-INJ301-90	Hardened Gigabit 1-port Ethernet Input + 1-port 95W PoE++ Output Injector with 12~48V DC wide range power input
Mounting Options	► Default DIN-Rail Bracket installed; Wall Mount Bracket is included.
Power Options	► 120W/2.5A 48VDC Power Supply. Open Wire for Terminal Block
Power Options	► Power Supply is to be purchased separately.
