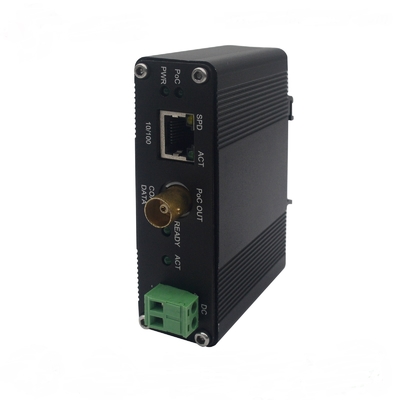

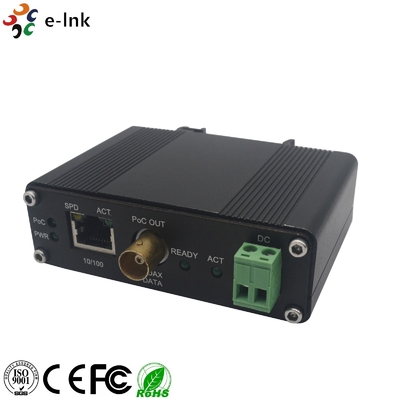

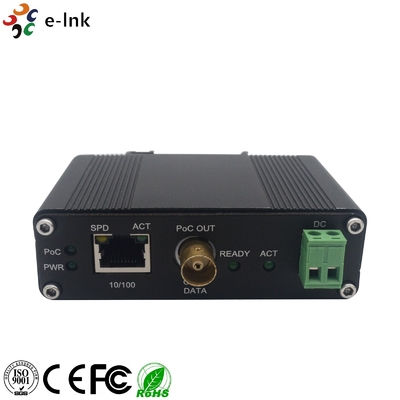

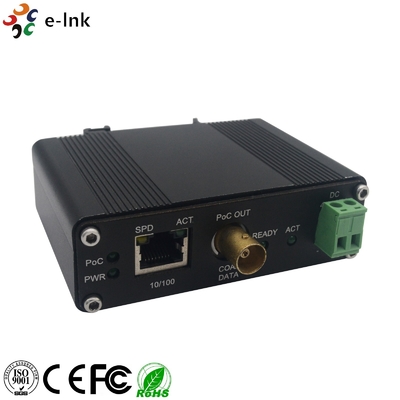

LNK-DEC110P EOC Converter for 10/100Mbps Ethernet Extension over Coax Cable

تصویر بزرگ : LNK-DEC110P EOC Converter for 10/100Mbps Ethernet Extension over Coax Cable

جزئیات محصول:

محل منبع:	چین
نام تجاری:	E-link
گواهی:	CE FCC RoHS
شماره مدل:	lnk-dec110p

پرداخت:

مقدار حداقل تعداد سفارش:	1 عدد
قیمت:	Negotiated
جزئیات بسته بندی:	اترنت بیش از بسته های استاندارد Exxport Coax Extenders
زمان تحویل:	3-10 روز کاری
شرایط پرداخت:	T/T، Western Union، MoneyGram، Paypal
قابلیت ارائه:	2000 در هر دهان

مخاطب

توضیحات محصول جزئیات

استاندارد:	IEEE802.3af/at	ورودی برق:	48-57VDC (کانکتور 2 پین) یا PoE
حداکثر برق در هر پورت:	حداکثر 25.5 وات در RX / حداکثر 30 وات در TX	ابعاد (W x D x H):	95 × 67 × 30 میلی متر
وزن:	0.25 کيلوگرم	پوشش:	کیس آلومینیومی
برجسته کردن:	Ethernet over Coax Cable EOC Converter,EOC Converter 10/100Mbps,LNK-DEC110P EOC Converter , EOC Converter 10/100Mbps , LNK-DEC110P EOC Converter

DIN-Rail Industrial 10/100Base-TX (PoE+) Ethernet over Coax Extenders with PoC

Ethernet over Coax Extenders Overview

The LNK-DEC110P series DIN-rail-mounted EOC device extends a single 10/100Base-TX Ethernet

signal over coaxial cable, with a maximum transmission distance of 1 km. It also provides high-power

PoE output (up to 30W), enabling direct power supply to network cameras. This PoC technology eliminates

the need for additional power at the transmitter or camera end, making it ideal for network-based retrofitting

of analog systems using existing coaxial cable. It is widely used in CCTV surveillance and remote network expansion.

Ethernet over Coax Extenders Features

Ethernet Extension: Security Link over Coax

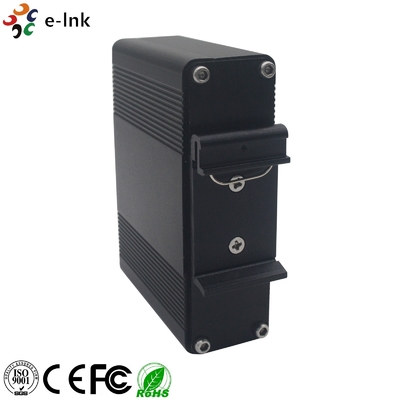

Support DIN-Rail mount installation
PoE+ (30W) and Power over Coaxial
802.3af/802.3at Compliant
Max. Distance: 1Km over Coax (RG-59/U)
Data Rate up to: 90Mbps (Downlink), 90Mbps (Uplink)
Compatible with 4-port standalone Receiver & Rack Mount 8/16-port Receiver
Accept 48~57VDC external power input or PoE power input from RJ45 port

Ethernet over Coax Extenders Technical Indexes

Ethernet
Standards	IEEE802.3 10Base-T
	IEEE802.3u 100Base-TX
	IEEE802.3af Power Over Ethernet
	IEEE802.3at Power Over Ethernet
Cabling	10Base-T: Cat 3,4,5, or above
	100Base-TX: Cat5 or above
Maximum Distance	Cat5UTP up to 100m
Connector	1 x RJ45
Coaxial
Cabling	Coaxial Cable (75 ohm)
Connector	1 BNC (female)
Distance	Up to 1Km on RG-59/U
Data Rate
Downlink (TX to RX)	90Mbps (Max.)
Uplink (RX to TX)	90Mbps (Max.)
Technology	Power Line Communication (PLC)
Protection
Reverse Polarity	Present
Electrical and Mechanical
Input Power	48-57VDC (2 pin connector) or PoE
Power Consumption	8W Max. (PoC not in use)
Power Consumption	60W Max. (Poc in use)
LED Indicators
Power	Power Status
Coax	LINK(Transmitter) / Ready(Reveiver) / PoC(Receiver), Activity
Ethernet	SPD, LINK/ACT, PoE(Transmitter)
PoE
Standard	IEEE802.3af/at
Mode	B Mode
Port	RJ45
Max. Power Per Port	25.5W max.at RX(Powered Device)
Max. Power Per Port	30W Max.at TX(Power Souring Equipment)
Mode	Positive(VCC+): RJ45 Pin 4,5
Mode	Negative(VCC-):RJ45 Pin 7,8

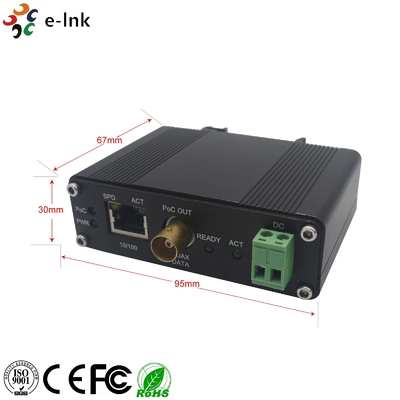

Dimensions (W x D x H)	95 × 67 × 30 mm
Weight	0.25kg
Casing	Aluminum case
Environmental
Operation Temperature	-10˚C to 60˚C (14˚F to 140˚F)
Storage Temperature	-40˚C to 85˚C (-40˚F to 185˚F)
Relative Humidity	5% to 90% non-condensing
MTBF	> 100,000 hrs
Regulatory Approvals	ISO9001 FCC Part 15 Class A EN55022 Class A Surge Protection RJ45: 1KV BNC: 2KV Power: 500V

Ethernet over Coax Extenders Ordering Information

Model	Description
LNK-DEC110P-T	DIN-Rail Transmitter of 10/100Base-TX (PoE+) Ethernet Over Coaxial with PoC
LNK-DEC110P-R	DIN-Rail Receiver of 10/100Base-TX (PoE+) Ethernet Over Coaxial with PoC
