16 Port Ethernet Over Coax Converter , Coaxial Cable To Ethernet Adapter Converter

Name: 16 Port Ethernet Over Coax Converter , Coaxial Cable To Ethernet Adapter Converter
Brand: E-link
SKU: LNK-EOC1160P-R
Rating: 5 (124 reviews)

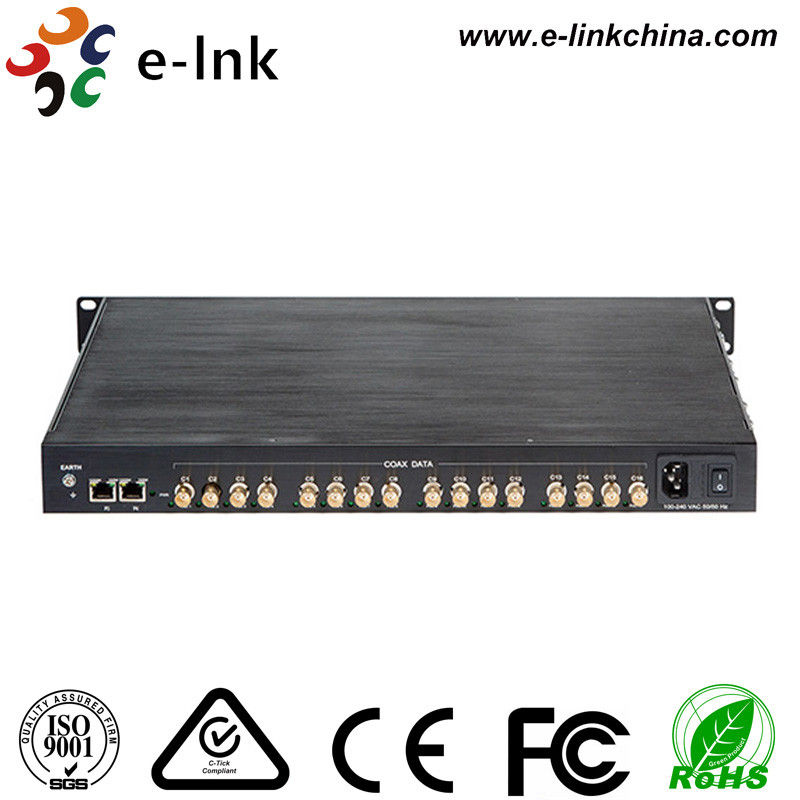

تصویر بزرگ : 16 Port Ethernet Over Coax Converter , Coaxial Cable To Ethernet Adapter Converter

جزئیات محصول:

محل منبع:	Guangdong, China
نام تجاری:	E-link
گواهی:	CE/FCC/Rohs
شماره مدل:	LNK-EOC1160P-R

پرداخت:

مقدار حداقل تعداد سفارش:	1
قیمت:	Negotiation
جزئیات بسته بندی:	Standard export package
زمان تحویل:	5000pcs Per Month
شرایط پرداخت:	T/T, Western Union, MoneyGram

مخاطب

توضیحات محصول جزئیات

Ethernet Connector:	4 x RJ45	Coax Connector:	16 x BNC
Transfer Distance:	800m	Operating Temperature:	-10 to 60 °C
Connector:	4 x RJ45	Name:	ethernet over coax adapter
برجسته:	ethernet to coax media converter,ethernet over coax extender , ethernet over coax extender

16 port Ethernet over Coaxial Receiver with PoC

Model: LNK-EOC1160P-R

Overview

The LNK-EOC1160P receiver works with the transmitter of 1 port Ethernet Extender over Coax with PoC (LNK-EOC110P-T) to provide Ethernet Extension of 8/16 channel 10/100Base-TX over Coaxial cable to 4-port 10/100/1000Mbps Ethernet. The maximum transmission distance is 800m. The product support PoC, hence, no power point is required at the camera side for the transmitter (LNK-EOC110P-T) and its connected IP camera if the camera obtain power from the transmitter via Power over Ethernet (PoE). The Ethernet data received by anyone of the coax data port (1-8/16) at the receiver is transferred to all four Ethernet ports (P1-P4). The product is good for retrofit of analogue system by using the existing coaxial cable infrastructure.

Features

Ethernet Extension: Security Link over Coax
Connecting up to 16 x LNK-EOC110P-T and IP Cameras
With full switching capability
1000Mbps Full-duplex communication
Power over Coaxial (Max. 800W total output)
Data Rate per port up to : 40Mbps (Downlink), 10Mbps (Uplink)
Max. Distance: 800m over Coax (RG59/U)
Auto MDI/MDI-X
AC power input
19” 1U Rack-mount

Technical Indexes

Ethernet
Standards	IEEE802.3 10Base-T
Standards	IEEE802.3u 100Base-TX
	IEEE802.3ab 1000Base-T
Cabling	100Base-TX: Cat5 or above
Maximum Distance	Cat5UTP up to 100m
Connector	4 x RJ45
Coaxial
Cabling	Coaxial Cable (75 ohm)
Connector	16 BNC (female)
Distance	800m
Data Rate per port	40Mbps Max. (Downlink)
Data Rate per port	10Mbps Max. (Uplink)
Technology	Power Line Communication (PLC)
Protection
Reverse Polarity	Present
Overload Protection	Present
Electrical and Mechanical
Input Power	100-240VAC, 50/60Hz
Power Consumption	32W Max. w/o PoC
Power Consumption	1000W Max. w/PoC
Dimensions (W x D x H)	483 × 300 × 44 mm
Weight	4.5 Kg
Casing	Aluminum case
Environmental
Operation Temperature	-10°C to 60°C (14℉ to 140℉)
Storage Temperature	-40°C to 85°C (-40℉ to 185℉)
Relative Humidity	5% to 90% non-condensing
MTBF	> 100,000 hrs
Regulatory Approvals	ISO9001 FCC Part 15 Class A EN55022 Class A Surge Protection RJ45: 1KV BNC: 2KV Power: 500V
